Subduction zones are as complex as they are ubiquitous. To understand subduction zone dynamics and processes we first have to understand the thermal structure of subduction zones and how this evolves in time. This week Adam Holt, Assistant Professor in the Department of Marine Geosciences (MGS) at the University of Miami Rosenstiel School of Marine and Atmospheric Science (RSMAS) and Cailey Condit, Assistant Professor in the Department of Earth and Spaces Sciences at the University of Washington, share their recent work on the slab thermal structure, its spatio-temporal variation and what this means for mantle hydration.

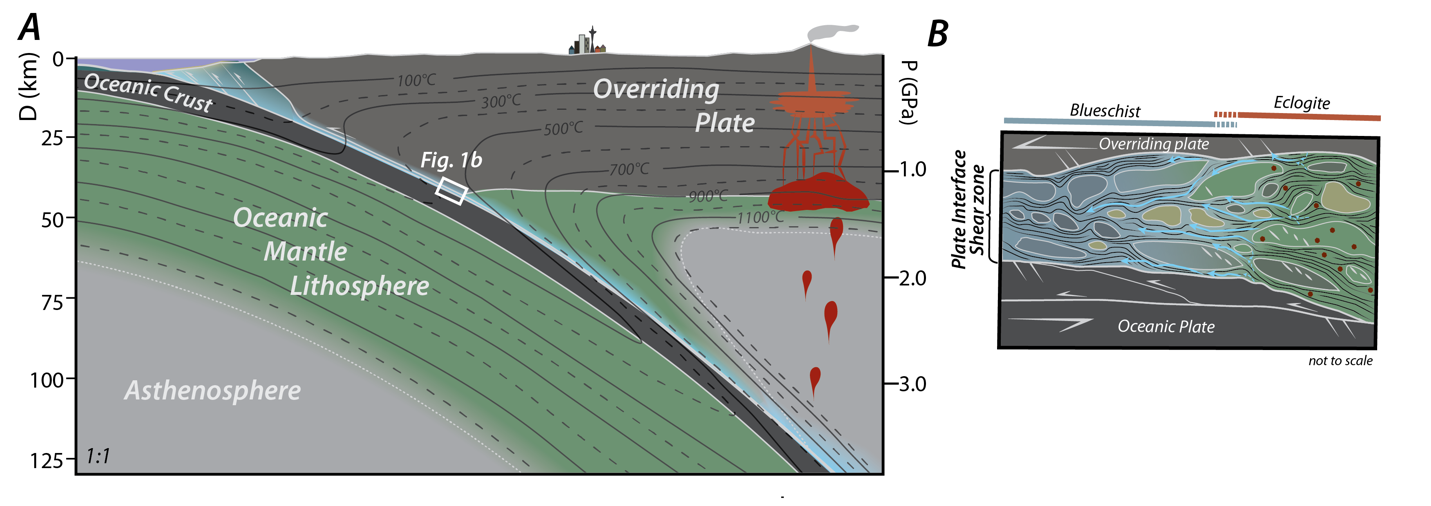

The thermal structure of subduction zones affects an exceptionally wide range of subduction processes and properties. These include the rheological strength of the plate interface, mantle wedge melting, and the metamorphic phase transformations that occur in the downgoing plate (Figure 1). Via these temperature (and pressure) dependent transformations (e.g., blueschist to eclogite transition [Figure 1]), thermal structure contributes to element cycling by controlling when and where specific materials in the slab devolatilize (e.g., dehydrate) into the mantle wedge vs. where mineral-bound water remains in the slab and is dragged deep into the mantle. Developing a robust understanding of subduction zone thermal structure has therefore been a longstanding theme of subduction zone research (e.g., McKenzie, 1970; Davies, 1999; Syracuse et al., 2010).
In our recent work (Holt and Condit, 2021), we use subduction models to address the following two questions: How does slab thermal structure evolve over geological time? What are the dynamic processes that control this evolution? We compare time-dependent thermal models to pressure-temperature [P-T] conditions from exhumed rocks, and also use them to calculate time-evolving dehydration patterns in subducting slabs. Constraining this time-dependence is vital to interpret observables from the geological past (e.g., exhumed rocks) and to figure out how to time-integrate the processes that impact solid earth evolution (e.g., volatile fluxes into/out of the mantle).
Modelling studies often predict the thermal structure of Earth’s present-day subduction zones using numerical calculations of mantle wedge flow. These models typically prescribe constant subducting plate properties – it’s age, geometry, and speed – and calculate the resulting slab/wedge thermal structure. These kinematically-driven thermal models have led to important insights about how down-going water flux varies between subduction zones (e.g., Peacock, 1993; van Keken et al., 2011), what drives mantle wedge melting (Grove et al., 2009; Perrin et al., 2018), and rock exhumation (Gerya et al., 2002; van Keken et al., 2018). One of the main strengths of this approach is that such models are easy to tailor to a specific, present-day subduction zone, as speeds, geometries, and ages are well-known. However, due to a lack of dynamic consistency (i.e., slabs imposed rather than emergent), applying these models to study time-dependent phenomena is challenging.
Rocks exhumed at paleo-subduction zones can indeed record highly time-dependent slab temperatures (e.g., Lázaro et al., 2009; Groppo et al., 2009); as is unsurprising given the relatively rapid, few-Myr-timescale, variability in subduction properties (e.g., convergence rates) recorded by tectonic observables and emergent in dynamic subduction models (e.g., Sdrolias and Müller et al., 2006; Cerpa et al., 2014). With this in mind, we used numerical models to develop a time-evolving framework for how slab temperature varies over a subduction zone’s lifetime. Relatively few studies have examined the detailed evolution of slab P–T conditions in dynamic models that do not impose any external forces or velocities on the slab-mantle system. Notably, Kincaid and Sacks (1997) showed that slab-top P-T conditions (i.e. the temperature along the upper surface of the slab) evolve significantly during subduction, with a pronounced cooling trend. We used the ASPECT finite element code (Bangerth et al., 2020; Kronbichler et al., 2012; Heister et al., 2017) to push this modelling approach further: We allowed slabs to evolve in a large model domain and interact with the lower mantle, highly resolved the plate interface region, and explored the effects of variable slab and crust properties (Figure 2a).

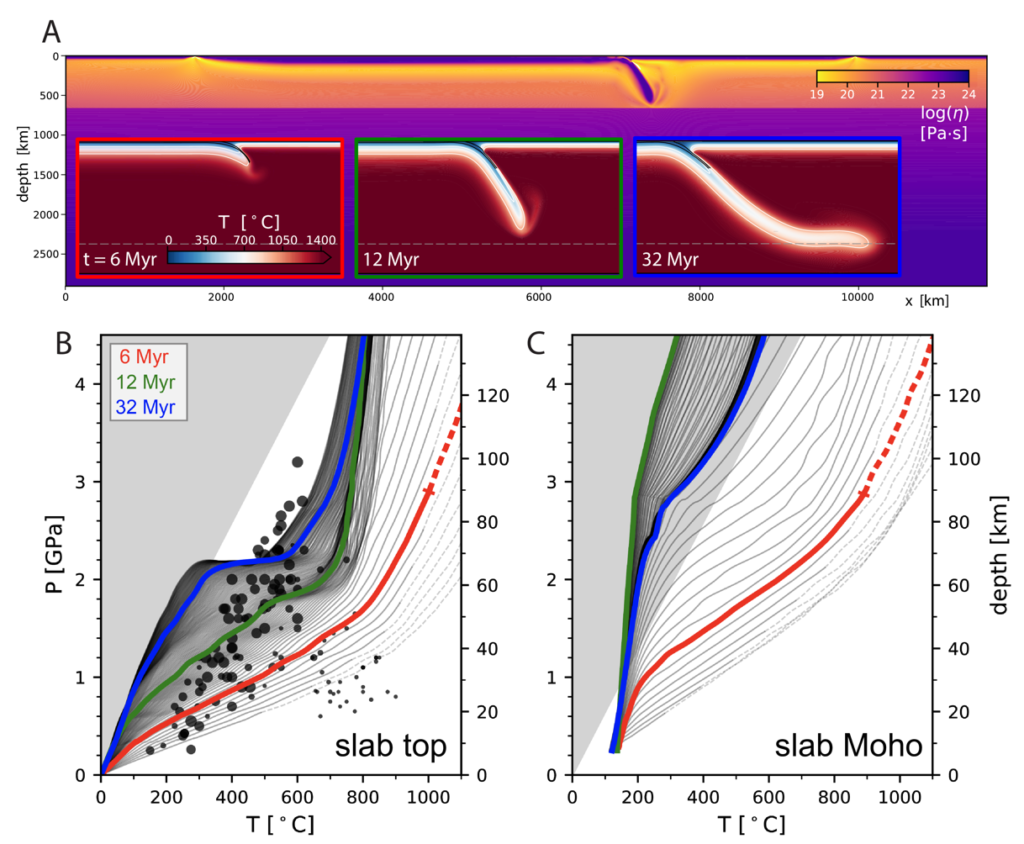

Our slabs also experience highly time-dependent thermal conditions over their ~ 40 Myr model lifetimes. Slab temperatures decrease rapidly during subduction initiation – here, the first 5 to 10 Myr – and subsequently cool at a reduced rate. After initiation, this cooling is primarily in response to an ageing (and hence thickening) upper plate that blankets the slab; An effect that requires dynamic, time-evolving models to resolve. Superimposed on this are additional trends that are best seen in model P-T paths: depth-dependent temperature profiles along the slab top and slab Moho. For example, the slab Moho is coolest during the middle of the model run, as shown by the green P-T profile, before returning to warmer conditions (Figure 2c). This is because the most rapid convergence rates occur as the slab-tip sinks through the upper mantle during this intermediate phase, and so the internal part of the slab has less time to heat up as it sinks. Slab top profiles are less variable, besides cooling, but the P-T profiles gradually become more kinked (Figure 2b).
To summarise our thermal models: slab temperatures (both at the slab top and slab Moho) are highly dynamic and time-dependent! This suggests that subduction zone thermal structure at any snapshot is an integration of its time-dependent thermal evolution up to that point.
Such rapidly changing slab temperatures affect a host of important geological processes. For example, petrologic analyses of exhumed metamorphic rocks are a key constraint on slab P-T conditions and subduction related processes (see points on Figure 2b; Agard et al. 2018). However, most ancient subduction terranes were exhumed tens-to-hundreds of Myr ago at paleo-subduction zones. Our models demonstrate that – even at a single subduction zone – the recorded P-T conditions can vary by hundreds of degrees and sweep through much of the P-T conditions found in the rock record. This illustrates the importance of time dependance on thermal structure and can help researchers place exhumed rocks into their relevant geodynamic context. Moreover, this time dependance may help explain some of the discrepancies between modelled and observed slab temperatures (in addition to other mechanisms like shear heating, e.g., Penniston-Dorland et al. 2015; Kohn et al., 2018).

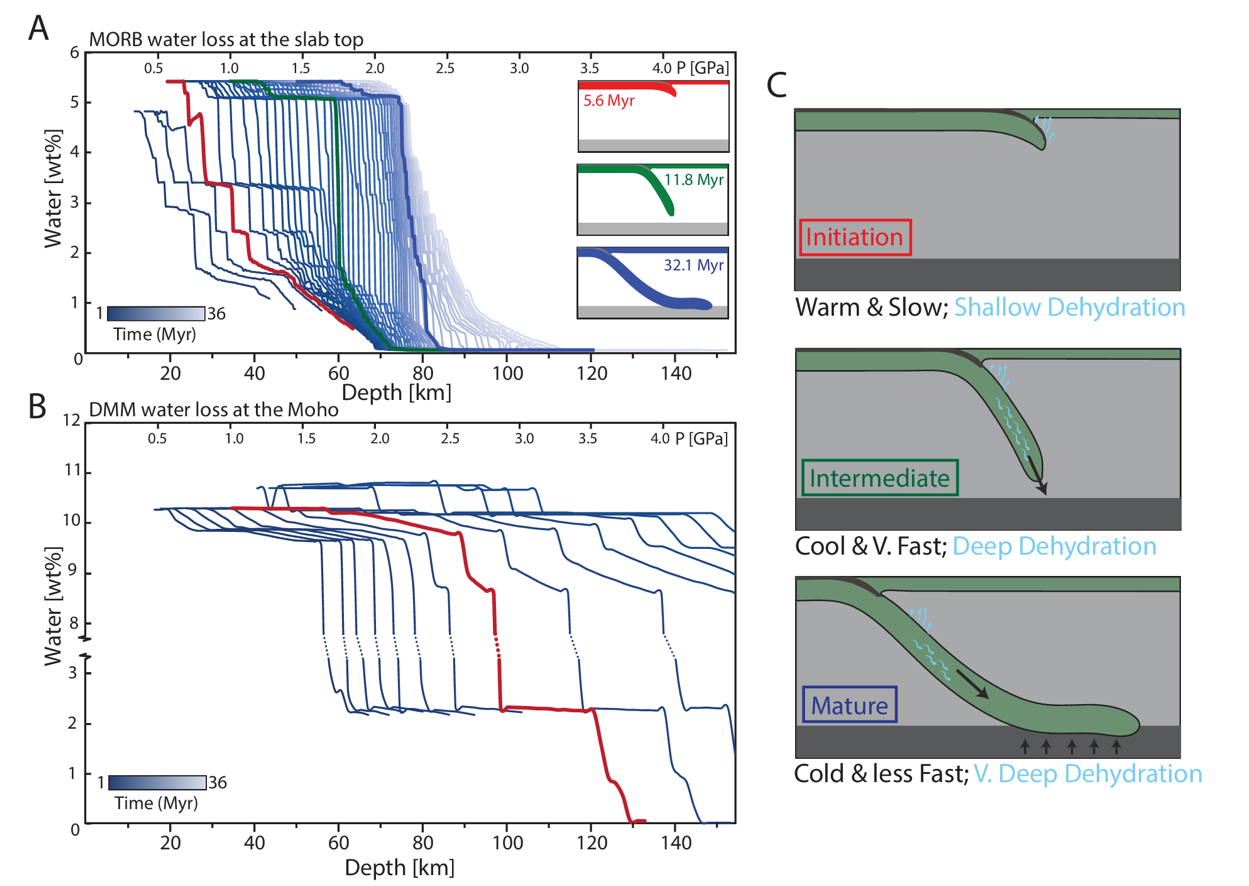

Next, to predict how slab dehydration evolves during subduction we also coupled our thermal models with thermodynamic phase equilibria modelling (done in the program Perple_X (Connolley and Petrini (2002)). Our P-T paths were fed into thermodynamic models of hydrated mid-ocean ridge basalt (MORB) and depleted MORB mantle (DMM; hydrated peridotite) to compute approximate dehydration depths and magnitudes along, respectively, the subduction interface and slab mantle. We found that during the initiation stages of subduction, when things are hottest, hydrated slab mantle provides most of the water that reaches sub arc depths (80-100 km) while it is so hot along the slab top that MORB loses all its water to dehydration reactions in the shallow forearc (Figure 3a-b). As the subduction zone cools down, MORB at the slab top becomes the dominant fluid source to the subarc mantle wedge, while hydrated DMM can carry ample water deep into the mantle far beyond the subarc because it remains refrigerated. While these patterns have been observed before, mainly in kinematically-driven models (e.g., Rüpke et al., 2004; Hacker et al., 2008; van Keken et al., 2011), our results highlight the importance of time evolving thermal structure on slab dehydration (Figure 3c).
This work provides a basis for interpreting geologic observations that suggest subduction zone thermal structure is time-evolving, and points to several avenues for important future research. While our models provide example thermal evolutions, a key challenge is developing methodologies to attach these dynamic models to specific, time-evolving Earth subduction zones. In addition, many complexities that have been shown to affect thermal structure in kinematically-driven models – e.g., shear heating, three-dimensionality, melt and fluid migration – are understudied (or unstudied) within fully-dynamic models. These should produce interesting feedbacks between slab P-T (e.g., increases in temperature cause shallower slab dehydration/densification) and dynamics (e.g., shallower densification may speed subduction up and, in turn, cause cooling). Careful integration of geodynamic models and detailed geological observations will be needed to constrain these feedbacks!
