Image of the Week — Climate change and disappearing ice

The first week of the Climate Change summit in Bonn (COP 23  for those in the know) has been marked by Syria’s decision to sign the Paris Accord, the international agreement that aims at tackling climate change. This decision means that the United States would become the only country outside the agreement if it were to complete the withdrawal process vowed by President Trump.

In this context, it has become a tradition for this blog to use the  United Nations climate talks as an excuse to remind us all of some basic facts about climate change and its effect on the part we are most interested in here: the cryosphere! This year we have decided to showcase a few compelling animations, as we say “a picture is sometimes worth a thousand words”…


Arctic sea ice volume

Daily Arctic sea ice volume is estimated by the PIOMAS reconstruction from 1979-present [Credit: Ed Hawkins]

The volume of Arctic sea ice has declined over the last 4 decades and reached a record low in September 2012. Shrinking sea ice has major consequences on the climate system: by decreasing the albedo of the Arctic surface, by affecting the global ocean circulation, etc.

More information about Arctic sea ice:

Land ice losses in Antarctica and Greenland

Change in land ice mass since 2002 (Right: Greenland, Left: Antarctica). Data is measured by NASA’s Gravity Recovery and Climate Experiment (GRACE) satellites. [Credit: Zack Labe]

Both the Antarctic and Greenland ice sheets have been losing ice since 2002, contributing to global sea-level rise (see previous post about sea level) .  An ice loss of 100 Gt raises the  sea level by ~0.28 mm (see explanations  here).

More information about ice loss from the ice sheets:



The cause: CO2 emissions and global warming

Finally we could not close this post without showing  how the concentration of carbon dioxide have evolved  over the same period and how this has led to global warming.

CO₂ concentration and global mean temperature 1958 – present. [Credit:Kevin Pluck]

More information about CO2 and temperature change

  • Global Temperature | NASA: Climate Change and Global Warming
  • Carbon dioxide | NASA: Climate Change and Global Warming

More visualisation resources

Visualisation resources | Climate lab



Edited by Clara Burgard

Image of the Week – Climate Change and the Cryosphere

Image of the Week – Climate Change and the Cryosphere

While the first week of COP22 – the climate talks in Marrakech – is coming to an end, the recent election of Donald Trump as the next President of the United States casts doubt over the fate of the Paris Agreement and more generally the global fight against climate change.

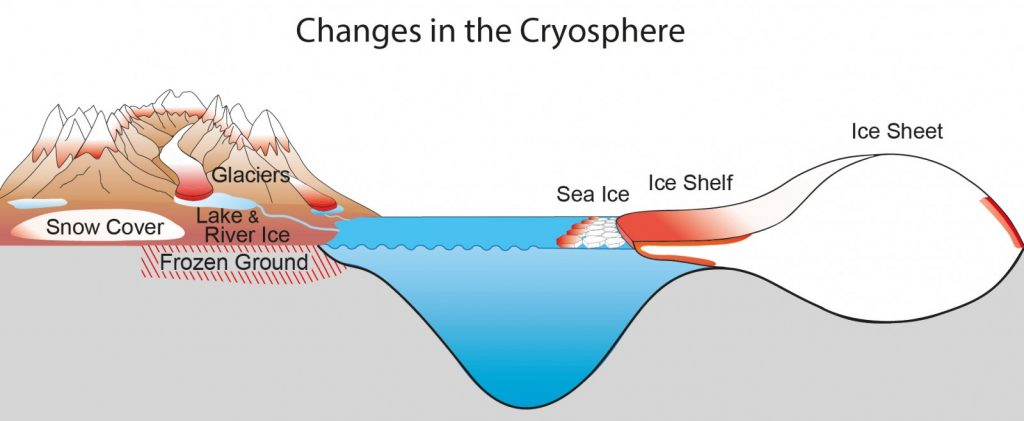

In this new political context, we must not forget about the scientific evidence of climate change! Our figure of the week, today summarises how climate change affects the cryosphere, as exposed in the latest assessment report of the Intergovernmental Panel on Climate Change (IPCC, 2013, chapter 4)


Observed changes in the cryosphere

Glaciers (excluding Greenland and Antarctica)

  • Glaciers are the component of the cryosphere that currently contributes the most to sea-level rise.
  • Their sea-level contribution has increased since the 1960s. Glaciers around the world contributed to the sea-level rise from 0.76 mm/yr (during the 1993-2009 period) to 0.83 mm/yr (over the 2005-2009 period)

Sea Ice in the Arctic

  • sea-ice extent is declining, with a rate of 3.8% /decade (over the 1979-2012 period)
  • The extent of thick multiyear ice is shrinking faster, with a rate of 13.5%/decade (over the 1979-2012 period)
  • Sea-ice decline sea ice is stronger in summer and autumn
  • On average, sea ice thinned by 1.3 – 2.3 m between 1980 and 2008.

Ice Shelves and ice tongues

  • Ice shelves of the Antarctic Peninsula have continuously retreated and collapsed
  • Some ice tongue and ice shelves are progressively thinning in Antarctica and Greenland.

Ice Sheets

  • The Greenland and Antarctic ice sheets have lost mass and contributed to sea-level rise over the last 20 years
  • Ice loss of major outlet glaciers in Antarctica and Greenland has accelerated, since the 1990s

Permafrost/Frozen Ground

  • Since the early 1980s, permafrost has warmed by up to 2ºC and the active layer – the top layer that thaw in summer and freezes in winter – has thickened by up to 90 cm.
  • Since mid 1970s, the southern limit of permafrost (in the Northern Hemisphere) has been moving north.
  • Since 1930s, the thickness of the seasonal frozen ground has decreased by 32 cm.

Snow cover

  • Snow cover declined between 1967 and 2012 (according to satellite data)
  • Largest decreases in June (53%).

Lake and river ice

  • The freezing duration has shorten : lake and river freeze up later in autumn and ice breaks up sooner in spring
  • delays in autumn freeze-up occur more slowly than advances in spring break-up, though both phenomenons have accelerated in the Northern Hemisphere

Further reading

How much can President Trump impact climate change?

What Trump can—and can’t—do all by himself on climate | Science

US election: Climate scientists react to Donald Trump’s victory  | Carbon Brief

Which Trump will govern, the showman or the negotiator? | Climate Home

GeoPolicy: What will a Trump presidency mean for climate change? | Geolog

Previous posts about IPCC reports

Image of the Week — Ice Sheets and Sea Level Rise

Image of the Week —  Changes in Snow Cover

Image of the Week — Atmospheric CO2 from ice cores

Image of the Week — Ice Sheets in the Climate

Edited by Emma Smith

Image of the Week — Ice Sheets and Sea Level Rise (from IPCC)

Image of the Week — Ice Sheets and Sea Level Rise (from IPCC)

Context

On the eve of the COP21, it is of paramount importance to recall how strongly the cryosphere is affected by Climate Change. Today, we present the impact of melting ice on sea level rise, as it is presented in the latest assessment report of the Intergovernmental Panel on Climate Change.

Quick facts

-Since 1992, the Glaciers, Greenland and Antarctic Ice Sheets have risen the sea level by 14, 8 and 6 mm, respectively.
-The Greenland and Antarctic ice losses have accelerated for the last 2 decades.
In Greenland ice-loss rates increased from 34 Gt/yr* (between 1992-2001) to 215 Gt/yr (between 2002-2011), which was caused by more widespread surface melt + run-off and enhanced discharge of outlet glaciers.
While in Antarctica, ice-loss rates “only” rose from  30 Gt/yr (between 1992-2001) to 147 Gt/yr (between 2002-2011), this loss mostly occurred in West Antarctica (Amundsen Sea Sector and Antarctic Peninsula) and  was driven by  the acceleration of outlet glaciers.



*An ice loss of 100 Gt/yr is approximately 0.28 mm/yr of sea level equivalent
