The “Cliffs Notes” on Ice-Cliff Failure

The “Cliffs Notes” on Ice-Cliff Failure

The retreat of large glaciers that drain the Greenland and Antarctic ice sheets could expose immense ice-cliffs at newly-bared calving faces, which are the exposed ends of glaciers where, in these cases, glacier ice meets the ocean. Past a certain height, these ice cliffs will become susceptible to collapsing from high stresses, a process known as structural ice-cliff failure. If a taller ice cliff is continually exposed every time there is a failure event, then the glacier could enter a self-sustaining regime called marine ice-cliff instability (MICI). This process could dramatically impact the retreat rate of the Antarctic Ice Sheet and future sea level rise (DeConto and Pollard, 2016). In a new study published in Nature Communications, a suite of 3D glacier models is used to shed light on the looming process of ice-cliff failure. Let’s examine some of the results!

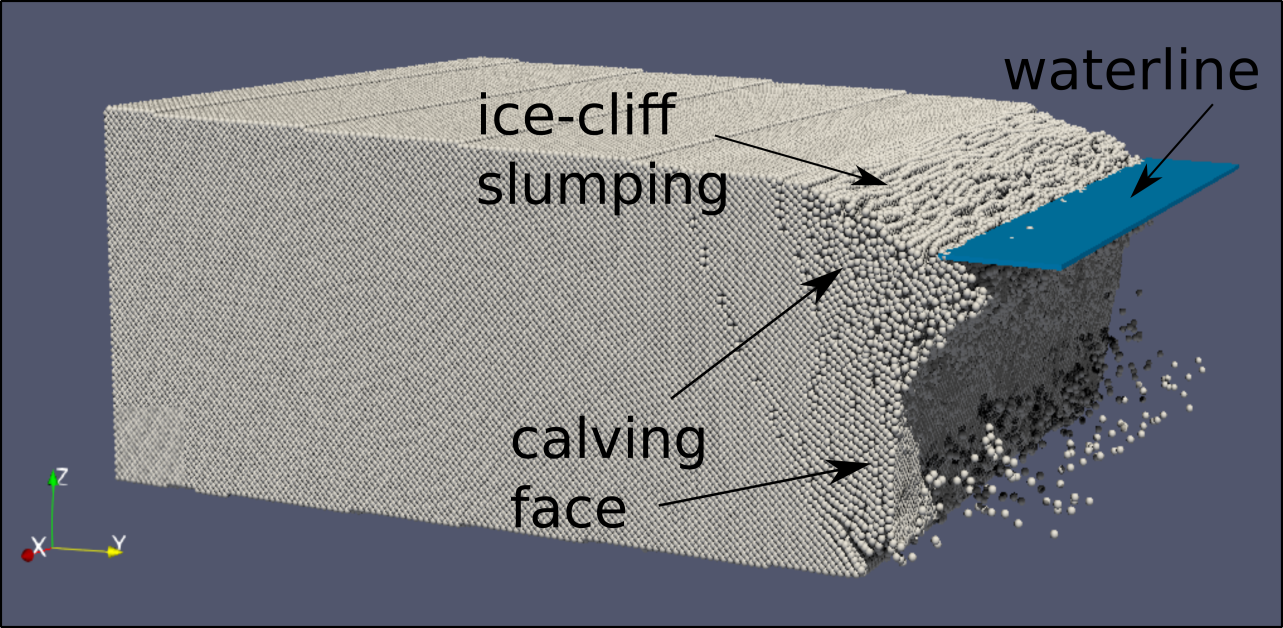

Using the Helsinki Discrete Element Model (HiDEM), we simulate the collapse of a tall ice-cliff as the strains inside the glacier become too large for the ice to sustain. The calving face is the entire section of ice that is exposed to the ocean or air. The ice cliff is the portion of the calving face above the waterline. Figure modified from Crawford et al. 2021.

The rise and fall of an ice cliff

Ice cliffs are exposed at marine-terminating glaciers (glaciers that meet the ocean) following the loss of ice shelves that extend over the adjacent ocean column. Crucially, ice shelves provide a back force to the glacier, which keeps the glacier from flowing too fast (Goldberg et al. 2009). Without the ice shelf effectively acting as a buttress that counters glacier outflow, the longitudinal strain (the along-flow deformation of the ice resulting from stress imbalances) imposed on the now exposed and largely vertical calving face is instead countered by hydrostatic pressure from the ocean column. Hydrostatic pressure is the pressure present into a static fluid, which you have surely experienced from the ache in your ear when you dive a few meters underwater. The two contrasting forces (the outward-pressing strain and backward-pressing hydrostatic pressure) may not be fully balanced, but an ice cliff can maintain intact as long as the strain does not become too great.

It’s important to note that ice is only so strong, in that it can only sustain a finite amount of strain before it breaks. As a result, an ice cliff will structurally fail once it exceeds a certain strain threshold. This will occur once the imbalance between longitudinal strain and hydrostatic pressure — an imbalance that increases with cliff height — becomes too large to sustain (Bassis and Walker, 2012). The figure below shows how a glacier is sustained by buttressing from ice shelves, and how longitudinal strain increases after back pressure provided by an ice shelf is removed and taller ice cliffs are exposed through retreat. The figure shows the grounding line, where the base of the glacier meets the ocean, retreating over ground (or the “bed”) that deepens towards the interior of the glacier. Such “reverse-sloping beds” characterise regions that are susceptible to instabilities such as MICI and marine ice-sheet instability. You can read more about the latter here as well.

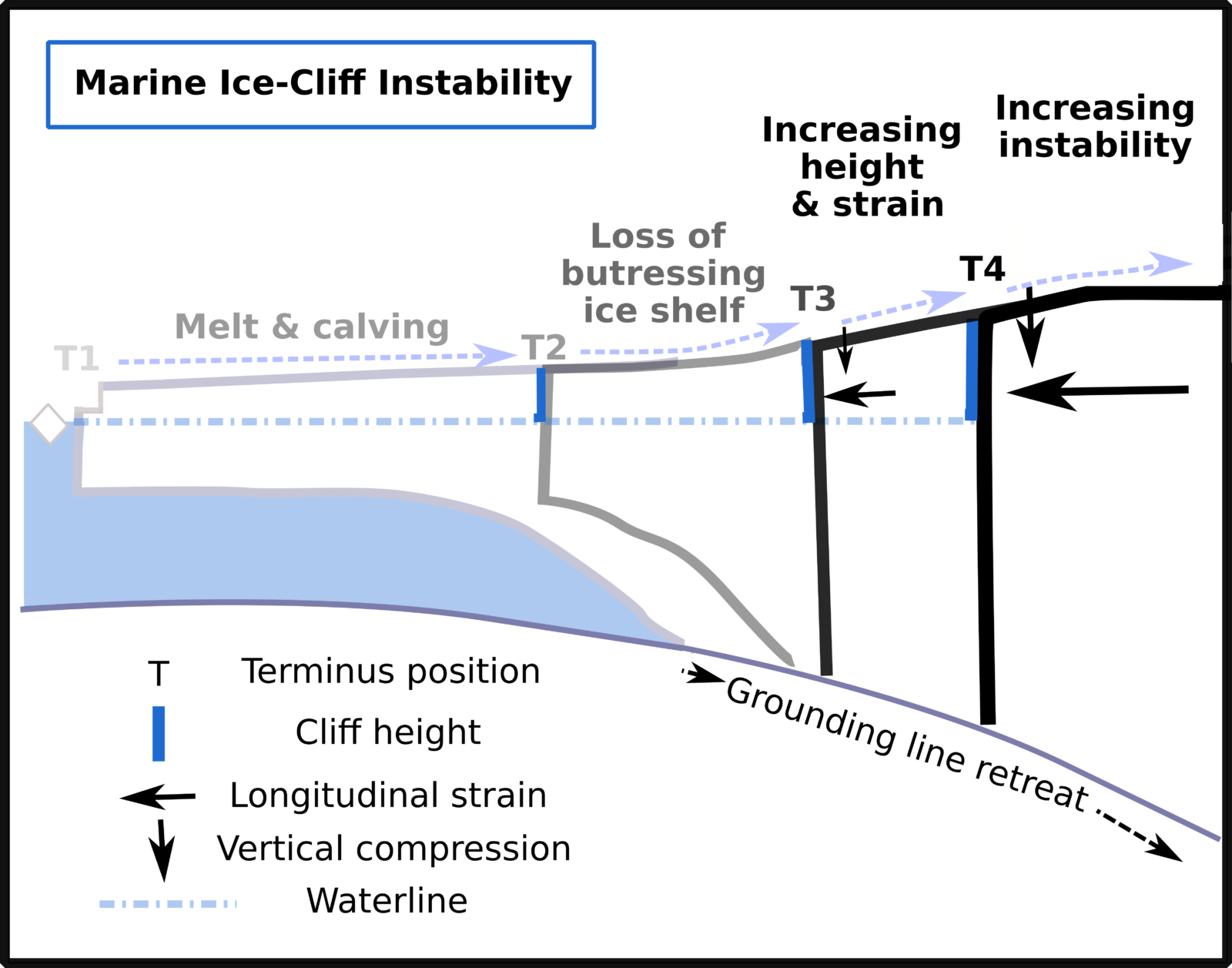

With the loss of an ice shelf that acts as a buttressing force against glacier flow, a glacier front becomes susceptible to increasing longitudinal strain (“stretching” forces) that, past a certain threshold, causes iceberg calving. If the glacier is thicker upstream, the retreat of the glacier from calving can expose increasingly tall ice cliffs that, in turn, make the system increasingly unstable. If conditions allow, this could create a self-sustaining process through which retreat could accelerate, initiating marine ice-cliff instability. Credits: Anna Crawford.

We have some clues about the occurrence of ice-cliff failure in the past, but our data is limited. This makes it challenging to understand how ice-cliff failure will transpire in the future. Without this understanding, it is also a challenge to reliably represent the influential process in models that are used to predict the retreat of the Antarctic Ice Sheet. And this is extremely important with respect to future sea level rise estimates!

Enter, stage-right: Glacier models.

Since we cannot control glaciers to our liking, one way to study glacier and ice shelf-related processes is to employ sophisticated glacier models. They provide an opportunity to investigate the process of ice-cliff failure and the factors that influence it. Our exciting (truly!) new study employs a suite of high-resolution, open-access 3D models to do just that. Specifically, we use the continuum model, ELMER/Ice, and two version of the particle model, HiDEM (the Helsinki Discrete Element Model). By pairing these models together, we are able to assess interactions between glacier flow and fracture.

What do the models show us?

We find that the collapse of ice cliffs will play out in a number of ways. Our simulations show that strong, undamaged ice deforms through surface lowering, waterline bulging, and a forward-lean of the calving face. This lean increasingly stretches the ice surface behind the calving face and after a threshold ice starts crevassing and releasing iceberg (calving). A presentation of this process is shown in the figure below. The stretching is shown between the top panels, and the ensuing fracture is seen between the bottom panels.

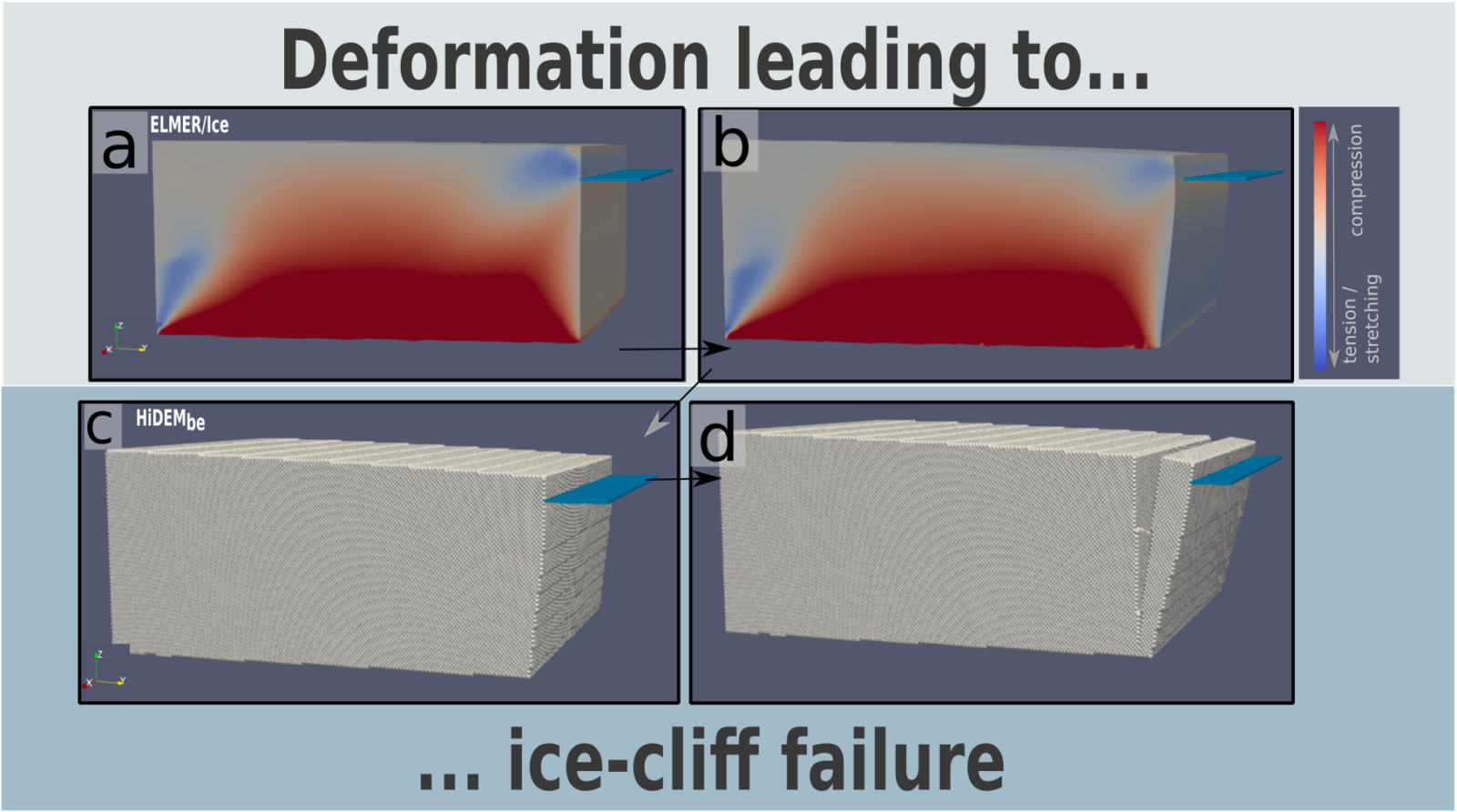

Deformation from glacier flow (represented by red/blue tones in the top panels) leading to ice-cliff failure. Deformation is simulated in Elmer/Ice (top panels) and HiDEM is used to determine the timing of failure, as well as how far the glacier retreats (bottom panels). These example simulations are conducted on a glacier that ends at the ocean with a calving-face thickness of 1500 m (the total ice height) and ice-cliff height of 255 m (the height of the ice emerging from water). The blue horizontal planes represent the ocean surface, or “waterline”. Modified from Crawford et al. 2021.

Earlier, we mentioned that this ice-cliff failure process can become self-sustaining if certain conditions are met and ice-cliff height increases with each failure event. By pairing ELMER/Ice and HiDEM, we find that, unnervingly, glacier-retreat rates increase non-linearly with ice-cliff height. In other words, increasing ice-cliff height enhances stress and strain and ultimately quickens its collapse. Moreover, retreat is hastened with warmer ice temperatures or increased bed friction, as both cause the calving face to more quickly reach the critical threshold at which ice-cliff failure occurs. From these simulations we derive an ice-cliff failure retreat rate parameterization – an equation that represents the relationship between retreat rates and cliff height for different scenarios of ice temperature and bed friction. This is a large contribution of our paper, as this parameterization can serve as that crucial representation for retreat via ice-cliff failure in ice-sheet models.

The above results are all associated with one way that an ice-cliff can fail. But we said earlier that our models show that failure can happen in a few different ways! We explored these different ways by “twiddling the dials” of HiDEM, essentially making the ice less robust. The figure below shows how failure plays out in these weaker-ice conditions. A defining characteristic is the presence of shear-bands, which are the diagonal fracture patterns that you see. At this time, we can’t calculate the retreat rates associated with this failure of weaker ice-cliffs. However, our model simulations show us that failure will be quicker when occurring under these weak-ice conditions.

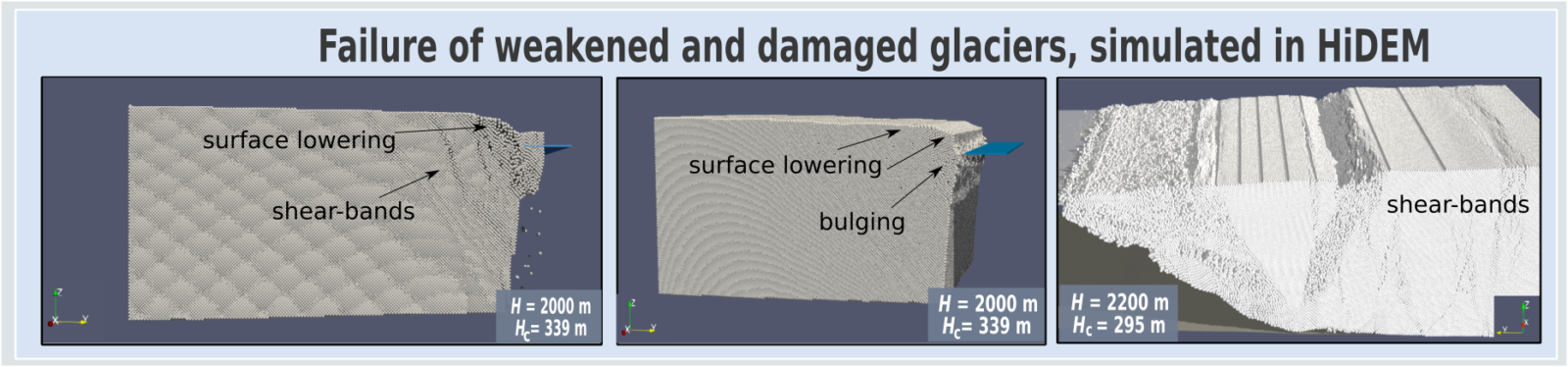

Ice-cliff failure in less-robust glaciers. These glaciers characteristically fail through shear-band formation, which is visualised as the diagonal banding that you see. Other characteristics of this failure is bulging at the waterline (the horizontal planes in the panels) and lowering of the top surface. The very thick glacier in the rightmost panel is also influenced by a slippery base, which makes it flow and fracture faster. The thickness and ice-cliff height of the simulated glaciers is noted by H and Hc, respectively. Modified from Crawford et al. 2021.

Are we doomed?

This all paints a pretty daunting picture. But no, we’re not doomed. Two primary reasons for this being:

  • Mélange: this is a conglomerate of icebergs and smaller ice chunks that can be glued together by sea ice just in front of a retreating ice cliff. Its accumulation can bring stability to an ice cliff by providing a counteracting force to the glacier’s longitudinal strain. Additional model simulations show that ice-cliff failure can be suppressed if enough mélange can build up and put sufficient force on a calving face.
  • Deformation: the evolution of a glacier’s shape due to stress leads to ice-cliff failure. It also causes surface lowering of the terminus. This means that the height of the ice cliff changes with every calving event. If the height of the ice-cliff consistently shrinks, it can lead to a decrease in retreat rates. It is even possible that the ice-cliff failure process will stop altogether if a newly-exposed ice-cliff has a height that falls below the threshold at which failure occurs.

Next steps in understanding ice-cliff failure and its impact.

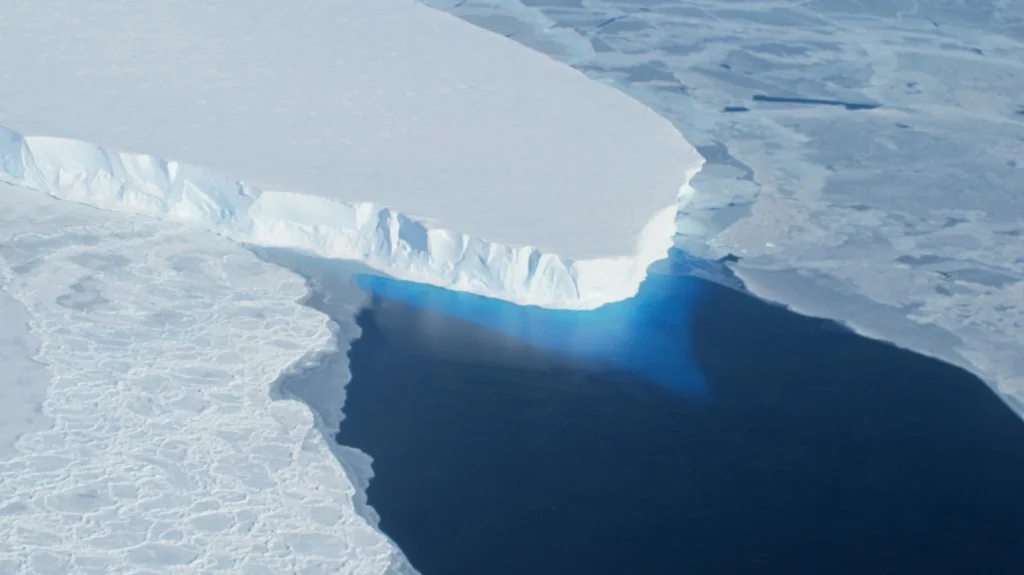

As all good science processes go, we now have further work to do! For one, we look to understand how ice-cliff failure could unfold at particular locations. One location that we are interested in is Thwaites Glacier in West Antarctica. This UK-sized glacier is vulnerable to ice-cliff failure and MICI initiation due to its placement over a reverse-sloping bed, which, we learned earlier, makes it susceptible to self-sustaining retreat through instability processes.

We also need to test our retreat rate parameterization in models that simulate the entire Antarctic Ice Sheet. There are going to be a number of factors and other processes to consider when doing so, so this will not likely be a straightforward step. It’s a very important step though, as ice-cliff failure could cause dramatic changes in the Antarctic coastline that comes with concerning repercussions for global sea level rise. Time to get back to the models!

Did you find this blog post interesting and informative? (We hope so!) Please keep your eyes peeled for Anna’s publication in Nature Communications (DOI: 10.1038/s41467-021-23070-7)!

Anna greatly appreciates her colleagues who supported the investigations into ice-cliff failure and marine ice-cliff instability. These colleagues include Prof Doug Benn (University of St Andrews), Dr Jan Åström (CSC-IT Centre for Science), Dr Joe Todd (University of St Andrews and University of Edinburgh), Dr Jeremy Bassis (University of Michigan) and Dr Thomas Zwinger (CSC-IT Centre for Science).

Further Reading

  • Bassis, J.N. & Walker, C.C. Upper and lower limits on the stability of calving glaciers from the yield strength envelope of ice. Proc. R. Soc. A 468, 913-931 (2012). doi: 10.1098/rspa.2011.0422
  • DeConto, R. M. & Pollard, D. Contribution of Antarctica to past and future sea-level rise. Nature 531, 591–597 (2016). doi: 10.1038/nature17145
  • Parizek, B. R. et al. Ice-cliff failure via retrogressive slumping. Geology 47, 4 (2019). doi: 10.1130/G45880.1
  • Schlemm, T. & Levermann, A. A simple stress-based cliff-calving law. The Cryosphere 13, 2475–2488 (2019). doi: 10.5194/tc-13-2475-2019
  • Schlemm, T. & Levermann, A. A simple parameterisation of mélange buttressing for calving glaciers. The Cryosphere 15, 531–545 (2021). doi: 10.5194/tc-15-531-2021
  • Wise, M. G., Dowdeswell, J. A., Jakobsson, M. & Larter, R. D. Evidence of marine ice-cliff instability in Pine Island Bay from iceberg-keel plough marks. Nature 550, 506–510 (2017). doi: 10.1038/nature24458
