Image of the Week – Ice on Fire (Part 2)

Image of the Week – Ice on Fire (Part 2)

This week’s image looks like something out of a science fiction movie, but sometimes what we find on Earth is even more strange than what we can imagine! Where the heat of volcanoes meets the icy cold of glaciers strange and wonderful landscapes are formed.


Location of the Kamchatka Peninsula [Credit: Encyclopaedia Britannica]

The Kamchatka Peninsula, in the far East of Russia, has the highest concentration of active volcanoes on Earth. Its climate is cold due to the Arctic winds from Siberia combined with cold sea currents passing through the Bearing Strait, meaning much of it is glaciated.

Mutnovsky is a volcano located in the south of the peninsula, which last erupted in March 2000. At the base of the volcano are numerous labyrinths of caves within ice. The caves are carved into the ice by volcanically heated water. The roof of the cave shown in our image of the week is thin enough to allow sunlight to penetrate. The light is filtered by the ice creating a magical environment inside the cave, which looks a bit like the stained glass windows of a cathedral. It is not always easy to access these caves, but when the conditions are favourable it makes for a wonderful sight!

The Mutnovsky volcano is fairly accessible for tourists, around 70 km south of the city of Petropavlovsk-Kamchatsky. Maybe this could be the holiday destination you have been searching for?

Further Reading

We have featured a number of stories about ice-volcano interaction on our blog before, read more about them here, here and here!

Edited by Sophie Berger

Image of the Week — Looking for ice inside a volcano !

Image of the Week —  Looking for ice inside a volcano !

Who would think that one of the world’s most active volcano shelters the southernmost persistent ice mass in Europe!?

Yes, you can find ice inside Mount Etna!

Located at an altitude of about 2,040 m above sea level, the Ice Cave  (Grotta del Gelo) is well known among Mt Etna’s volcanic caves due to the presence of columns of ice on its walls and floor which occupy about the 30% of the cave’s volume and persist all year round.

How did the ice get there and why does it remain?

  • This cave a small lava tube of less than 100 metres long was formed during Etna’s longest eruption that occurred on its northern flank from 1614 to 1624 A.D. (Marino, 1999)
  • Once formed, the cave was subsequently filled with ice.
  • The shape of the cave enables the ice to persist because there is only one single entrance to the ice cave that insulate the air from the outside. This enables the temperature to stay below 0°C in some parts of the cave all year round. This is not the case with other lava tubes around Etna that have several entrances, which allows the air to circulate within the caves, causing warming

Exploring the Ice Cave

By studying ice inside caves, researchers can obtain very useful biological and paleo-climatological information. Although we don’t know much about the conditions of the ice mass and its evolution over the last few centuries, speleologists (Centre Speleogico Etneo) and scientists (Italian National Institutites of Geophysics and Volcanology) have studied the cave for the past 20 years.

The use of new technologies such as UAV’s (see THIS or THIS previous blog posts about other applications of UAVs in glaciology) or terrestrial laser scanners on glaciers and ice caves can give the possibility to monitor surface variations of hidden underground areas that have never been affected by human activities.

This year, researchers and speleologists from the Inside The Glaciers Project, organised a first expedition to the cave, to acquire precise measurements of the ice mass surface, with a terrestrial laser scanner.

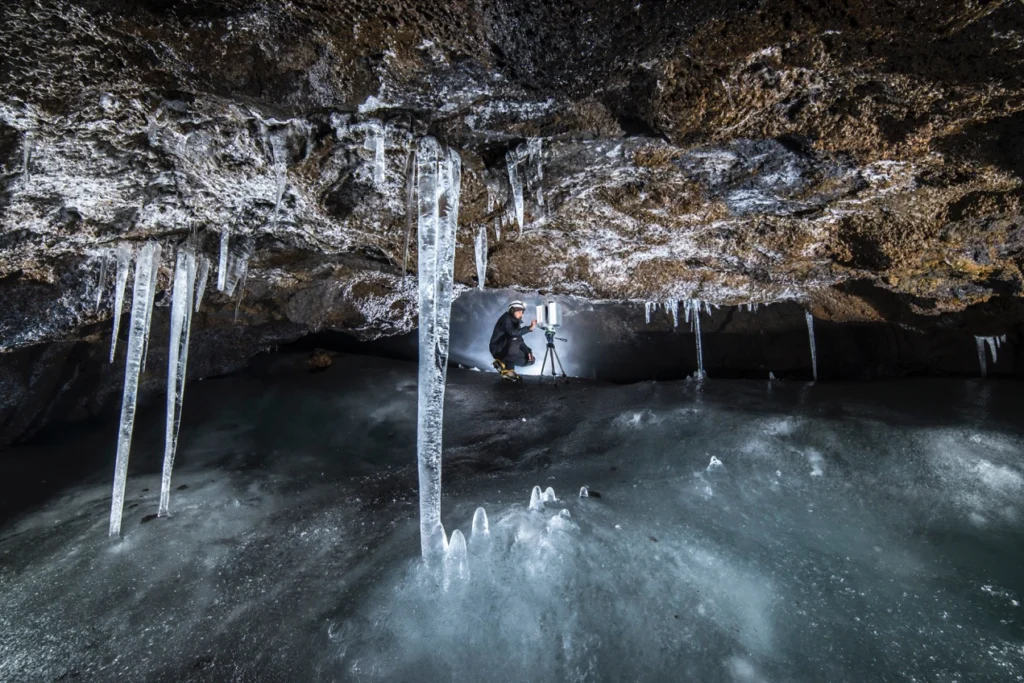

After a long walk of about 4 hours through beautiful volcanic landscapes, the Inside The Glacier team arrived at the entrance of the cave. There they surveyed the Ice Cave for 5 hours, performing 17 scans to detect the ice mass with very high accuracy.

With these measurements it was possible to draw detailed topographic plant and sections of the cave and derive 3D models of its surfaces, obtaining first data that will be compared in future with other laser scanner surveys to help scientists to study the evolution of the ice mass inside the cave.

Topographic plant and profile of the Ice Cave derived from laser scanning data. Ice deposits are represented in cyan color.[Credit: Tommaso Santagata]

Topographic plant and profile of the Ice Cave derived from laser scanning data. Ice deposits are represented in cyan color.[Credit: Tommaso Santagata]

Acknowledgements

This expedition was organized within the “Inside The Glaciers” Project in collaboration with the Association La Venta Esplorazioni Geografiche, Etna Natural Park, Italian National Insitute of Geophysics and Volcanology (I.N.G.V.), Centro Speleologico Etneo, Federazione Speleologica Regionale Siciliana, Gruppo Servizi Topografici s.n.c.

(Edited by Sophie Berger and Emma Smith)


tom_picTommaso Santagata is a survey technician and geology student at the University of Modena and Reggio Emilia. As speleologist and member of the Italian association La Venta Esplorazioni Geografiche, he carries out research projects on glaciers using UAV’s, terrestrial laser scanning and 3D photogrammetry techniques to study the ice caves of Patagonia, the in-cave glacier of the Cenote Abyss (Dolomiti Mountains, Italy), the moulins of Gorner Glacier (Switzerland) and other underground environments as the lava tunnels of Mount Etna.
He tweets as @tommysgeo

Ice on fire at the Royal Society Summer Science Exhibition

Ice on fire at the Royal Society Summer Science Exhibition

The Royal Society Summer Science Exhibition (RSSSE) is a free public event 4-10th July 2016 in London. This is a yearly event that is made up of 22 exhibits, selected in a competitive process, featuring cutting edge science and research undertaken right now across the UK. The scientists will be on their stands ready to share discoveries, show you amazing technologies and with hands-on interactive activities for everyone! The Royal Society has historic origins – going back to the 1660s and today it is the UK’s national science academy working to promote, and support excellence in science and to encourage the development and use of science for the benefit of humanity. If you can get yourself down to London this week then it is definitely worth a look!

The Royal Society Summer Science Festival Exhibit Hall. Photo Credit: Thorbjörg Águstsdóttir

The Royal Society Summer Science Festival Exhibit Hall. Photo Credit: Jenny Woods


What is there to see?

This year there are a number of ice-related exhibits. The “4D science” exhibit uses X-ray computer tomography to look inside ice cream and the “Explosive Earth” exhibit showcases ice-volcano interactions in Iceland using earthquakes. The Summer Science Exhibition yearly attracts around 12,000 visitors. This is a unique opportunity to meet cutting edge scientists, discover their research and try out fun and engaging activities for yourself.

Left: The Explosive Earth presented by the Cambridge University Volcano Seismology Group. Left: 4D Science: Diamond Light Source, University of Manchester and University of Liverpool - Looking inside materials through time

Left: The Explosive Earth presented by the Cambridge University Volcano Seismology Group. Right: 4D Science: Diamond Light Source, University of Manchester and University of Liverpool – Looking inside materials through time. Photo Credit: Jenny Woods

Explosive Earth!

The Explosive Earth exhibit has been put together by the Cambridge Volcano Seismology group. They explore many applications of volcano seismology, from what we can learn about movement of molten rock (magma at more than 1000°C) in the Earth’s crust and rift zone dynamics, to the very structure of the earth itself. They currently focus their research in central Iceland where they operate an extensive seismic network in and around some very active volcanoes, many of which are under Europe’s largest ice cap Vatnajökull. The seismic network detects tiny earthquakes caused by the movement of magma beneath the surface, which often occurs under volcanoes prior to eruption. By studying these seismic events, they hope to be able to predict volcanic activity better in the future. Their exhibit at RSSSE showcases current research in this explosive field of volcano seismology.



Eyjafjallajökull – 2010: an explosive eruption that disrupted air traffic

The 2010 eruption at Eyjafjallajökull (image at the top of the page) occurred beneath a glacier, which caused a highly explosive eruption. When hot magma comes into contact with ice the magma cools and contracts and the ice turns to steam and rapidly expands. This shatters the solidifying magma and produces ash. The explosivity of the interaction, and the pressure of all the rising magma underground, blows the mixture of ash, volcanic gases and steam high into the air, creating an eruptive plume. The 2010 Eyjafjallajökull eruption produced an ash plume that reached up to 10 km (35,000 feet). The fine ash was then carried 1000’s of km by the wind towards Europe where it grounded over 100,000 flights.

Installing seismometers in a variety of locations around Iceland to monitor tiny earthquakes from magma movement under the surface

Installing seismometers in a variety of locations around Iceland to monitor tiny earthquakes from magma movement under the surface. Photo Credits – Left: Rob Green, Right: Ágúst Þór Gunnlaugsson



Bárðarbunga-Holuhraun – 2014: a gentle eruption that affected air quality

In 2014 a completely different kind of eruption happened in central Iceland, also originating from a volcano under the ice. Magma flowed underground from Bárðarbunga volcano, beneath Vatnajökull ice cap, fracturing a pathway so far from the volcano that when it erupted there was no ice at the surface. Without the magma-ice interaction, the eruption was comparatively gentle and the molten rock simply fountained out of the ground, reaching heights of over 150 m. No ash was produced, only steam and sulphur-dioxide. The amount of magma erupted was much greater than in 2010 (an order of magnitude higher), but there was no impact on air travel because there was no ash plume. The Explosive Earth team are investigating the 30,000 earthquakes that led up to this spectacular six-month eruption in Iceland, to try and find out more about what happened and why. The earthquakes tracked the progress of the molten rock as it moved underground, away from Bárðarbunga volcano to the eventual eruption site at Holuhraun, 46 km away.

The fountains of lava accompanied by clouds of steam and sulphur-dioxide. The magma flowed 46 km underground from Bárðarbunga volcano to the eventual eruption site at Holuhraun, where it erupted continuously for 6 months. Photo Credit: Tobias Löfstrand

The fountains of lava accompanied by clouds of steam and sulphur-dioxide. The magma flowed 46 km underground from Bárðarbunga volcano to the eventual eruption site at Holuhraun, where it erupted continuously for 6 months. Photo Credit: Tobias Löfstrand

Cambridge Volcano seismology group in front of the fissure eruption on the first day of the 2014-15 Bárðarbunga-Holuhraun eruption.

Cambridge Volcano seismology group in front of the fissure eruption on the first day of the 2014-15 Bárðarbunga-Holuhraun eruption. Photo Credit: Thorbjörg Águstsdóttir

What can monitoring these earthquakes tell us?

Monitoring volcanic regions in Iceland is important because eruptions are frequent and have wide-range impacts:

  • Explosive eruptions under ice can cause rapid and destructive flooding of inhabited areas downstream, and can propel huge ash clouds into the atmosphere, disrupting air travel around the globe.

  • Gentle eruptions, producing large lava flows, can release millions of tones of harmful gases, affecting the local population and in some cases the global climate.

Studying earthquakes helps to understand the physical processes that occur in volcanic systems, such as how molten rock intrudes through the Earth’s crust and how the centre of a volcano collapses. The more we understand about the behaviour of these systems, the better we can forecast eruptions.

“Explosive Earth” exhibits earthquakes and eruptions in Iceland in a fun interactive way. You can find out more details of the science behind why and how these eruptions happen and how it is possible to monitor volcanic activity in Iceland using earthquakes. As a taster of what you can see, try entering your postcode into their lava flow game to see how big the Holuhraun lava flow is and how far it travelled underground prior to erupting. Other interactive activities include making your own earthquake and testing your reaction times with an earthquake location game.

BANNER_exhibit

(Edited by Emma Smith and Sophie Berger)


tobba_headshot.jpgThorbjörg Águstsdóttir (Tobba) is a PhD student at the University of Cambridge studying volcano seismology. Her research focuses on the seismicity accompanying the 2014 Bárðarbunga-Holuhraun intrusion and the co- and post-eruptive activity. She tweets as @fencingtobba, for more information about her work see her website.

From Hot to Cold – Volcanology Meets the Cryosphere

From Hot to Cold – Volcanology Meets the Cryosphere

Hello again, I’m Kathi Unglert, and you’re about to read my third and final post as a student reporter at EGU 2016. Today I am writing about my experience in the cryosphere sessions from my volcanology perspective.


In preparation for the conference I kept thinking about what sort of research I would see in the cryosphere sessions. I had never really attended any specific conferences or meetings on the topic, so most of what I knew was from work that friends of mine do, which is mainly ice stream modelling. I am wondering whether similar tools (for example, analytical or numerical methods) can be used to model ice streams and lava flows?



A Tale of Ice and Fire

Thinking about the differences between ice streams/glaciers and lava, another potential overlap between cryospheric sciences and volcanology jumps out; In places like Iceland, volcanoes sometimes sit underneath large ice sheets. Similarly, tall volcanoes – particularly those in high mountain ranges – are often covered in snow and have small glaciers in their craters or on their summits. It is important to understand the interactions between the warm volcano, the hot lava, and the cold ice. For example, to forecast catastrophic floods that often occur when a subglacial volcanic eruption melts parts of the overlying ice and snow (so-called “jökulhlaups”). There is even a commission on “glaciovolcanism”, and it turns out that astrogeologists are quite interested in the topic to learn more about potential volcano-ice interactions on Mars. I had no idea how interdisciplinary this field of research was. It would definitely be useful for volcanologists to poke their heads into cryosphere meetings once in a while, and vice versa. Throw a little bit of planetary science in the mix, and you have a textbook example of interdisciplinary research!

Lava meets snow: Lava flowing into a canyon at the snow covered Eyjafjallajökull during an eruption in 2010 - one of the many examples where volcanology and cryospheric sciences meet. Photo credit: Martin Hensch (Imaggeo)

Lava meets snow: Lava flowing into a canyon at the snow covered Eyjafjallajökull during an eruption in 2010 – one of the many examples where volcanology and cryospheric sciences meet. Photo credit: Martin Hensch (Imaggeo)

The methods that we use in the different fields can also be quite similar: Resistivity measurements can be used to determine the extent of permafrost in the subsurface in Artic regions, but also to detect high temperature bodies beneath volcanic edifices that may be storing magma. I also saw a PICO presentation at the conference last week that uses cosmic rays to image the bed of a glacier in the Swiss Alps, a technique that volcanologists have tested to detect magma reservoirs and conduits on volcanoes!

In terms of the bigger picture, volcanological and cryospheric research overlap a lot in climatology. Erupting volcanoes emit gases and increase aerosols in the atmosphere, which can affect the climate locally, regionally, or even globally. The traces of such volcanic eruptions can sometimes be found in ice cores, where volcanic ash gets trapped and preserved for centuries or more. For a long time, it has been known that at least one big volcanic eruption in the 6th century – the traces of which have been found in ice cores – caused strong changes in climate for a few years, and some studies suggest that these effects may have contributed to political and societal instability in the Maya civilization in Central America at the same time. There was even a press conference about it at the EGU 2016 meeting. Other questions that we could ask might be “Does wide spread glaciation change the frequency or nature of volcanic eruptions?”, “How do volcanic eruptions affect the climate and ice stream or glacier dynamics?”, or “What can we learn about glacier dynamics by analyzing the locations of volcanic deposits in ice?”

So you know how they say “go big or go home”? Let’s put our minds together and get interdisciplinary! At the very least it’s going to be fun to think in slightly different terms for a while, and who knows where it may lead!



The EGU Student Reporter Experience

All in all, it’s been really great taking part in the Student Reporter Programme, and peeking into a totally different field. Seeing overlap between the different disciplines was a good experience, and one that was made possible by being a student reporter. Sometimes we get so stuck in our individual little niche that there is no room for anything else, despite the fact that other disciplines might have come across the same problems, struggled with the same methods, and maybe found a solution. I was lucky that the session schedule worked out ok – most days when things were a bit slow volcanology-wise I was able to go a cryosphere session. However, that way it was a very busy week, there was rarely ever any downtime, or time away from the conference. During the few quiet moments I spent time in the press office, doing some background research for my posts, editing work from the other reporters, or going to a press conference. I have to say, the press office was a new, but very cool experience. There were always interesting people around, both scientists presenting their latest results and journalists trying to find a new story. I’ve been into science writing for a while, so meeting some of the people whose work I read was a really cool bonus to the whole programme! If you enjoy writing, don’t mind a faster pace, and are curious about science at EGU outside your field I would highly recommend the Student Reporter Programme. If there is no blog in your discipline (like it was the case for me) that might even be a good thing, and you’ll get to learn some new and unexpected things!

(Edited by Emma Smith and Sophie Berger)




profile_highres_EarthMatters_lightKathi Unglert is a PhD student in volcanology at the University of British Columbia, Vancouver. Her work looks at volcanic tremor, a special type of earthquake that tends to happen just before or during volcanic eruptions. She uses pattern recognition algorithms to compare tremor from many volcanoes to identify systematic similarities or differences. This comparison may help to determine the mechanisms causing this type earthquake, and could contribute to improved eruption forecasting. You can find her on Twitter (@volcanokathi) or read her volcano blog.
