Image of the Week — Biscuits in the Permafrost

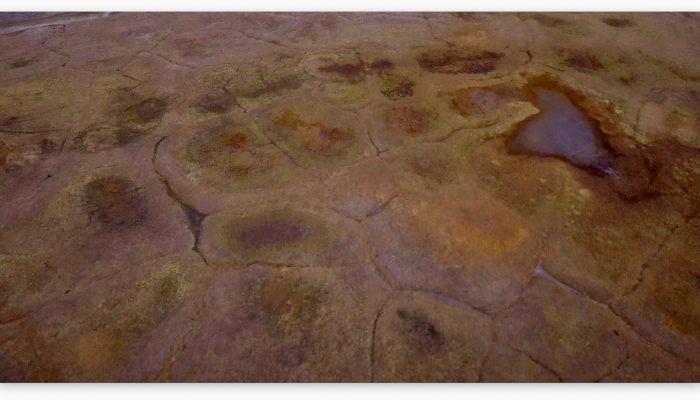

Fig. 1: A network of low-centred ice-wedge polygons (5 to 20 m in diameter) in Adventdalen, Svalbard [Credit: Ben Giles/Matobo Ltd]

In Svalbard, the snow melts to reveal a mysterious honeycomb network of irregular shapes (fig. 1). These shapes may look as though they have been created by a rogue baker with an unusual set of biscuit cutters, but they are in fact distinctive permafrost landforms known as ice-wedge polygons, and they play an important role in the global climate.


Ice-wedge polygons: Nature’s biscuit-cutter

In winter, cracks form when plummeting air temperatures cause the ground to cool and contract. O’Neill and Christiansen (2018) used miniature accelerometers to detect this cracking, and found that it causes tiny earthquakes, with large magnitude accelerations (from 5 g to at least 100 g (where g = normal gravity)!). Water fills the cracks when snow melts. When the temperature drops, the water refreezes and expands, widening the cracks. Over successive winters, the low tensile strength of the ice compared to the surrounding sediment means that cracking tends to reoccur in the ice. As the cycle of cracking, infilling, and refreezing continues over centuries to millennia, ice wedges develop.

Subsurface ice wedge growth causes small changes in the ground surface microtopography. There are linear depressions, known as troughs, above the ice wedges (fig. 2). Adjacent to the troughs, the soil is pushed up into raised rims. From these raised rims, the elevation drops off into the polygon centre, forming low-centred polygons (fig. 2a).

Shaping Arctic landscapes

Permafrost in the Northern hemisphere is warming due to increasing air temperatures (Romanovsky et al. (2010). As air temperatures rise, the active layer (the ground that thaws each summer and refreezes in winter) deepens.

As permafrost with a high ice content thaws out, the ice melts and the ground subsides. On the other hand, permafrost containing no ice does not experience subsidence. Consequently, permafrost thaw can cause differential subsidence in ice-wedge polygon networks. This re-arranges the surface microtopography: ice wedges melt, the rims collapse into the troughs, and the polygons become flat-centred and then eventually high-centred (fig. 2b and c; Lara et al. (2015)). Wedge ice is ~20 % of the uppermost permafrost volume, and so this degradation could have a big impact on the shape of Arctic landscapes.

Are ice wedge polygons climate amplifiers?

Fig. 2: Schematic diagrams of polygon types and features [Credit: Wainwright et al. (2015)].

The transition from low-centred to high-centred ice-wedge polygons affects water distribution across the polygonal ground. The rims of low-centred polygons tend to block water drainage, whereas the troughs facilitate relatively fast and effective drainage of water from the polygonal networks (Liljedahl et al., 2012). So, during summer, the centres of low-centred polygons are frequently flooded with stagnant water, whereas the central mounds of high centred polygons are well drained (and good to sit on at lunchtime!). The contrast in hydrology influences vegetation, surface energy transfer, and biogeochemistry, in turn influencing carbon cycling and the release of greenhouse gases into the atmosphere.

High-centred polygons can have increased carbon dioxide emissions compared to low-centred polygons, on account of their lower soil moisture, reduced cover of green vascular vegetation and the well-drained soil (Wainwright et al., 2015). On the other hand, once plant growth during peak growing season is accounted for, this can actually cause a net drawdown of carbon dioxide in high-centred polygons (Lara et al., 2015). In contrast, there is general agreement that low-centred polygons are associated with high summer methane flux (Lara et al., 2015; Sachs et al., 2010; Wainwright et al., 2015). This is due to multiple interacting environmental factors. Firstly, low centred polygons have a higher temperature, which increases methane production rates. Secondly, they also have moister soil, which decreases the consumption of methane, owing to the lower oxygen availability. Thirdly, the low-centred polygons often have more vascular plants that help transport the methane away from its production site and up into the atmosphere. Lastly, the low-centred polygons had higher concentrations of aqueous total organic carbon, which provides a good food source for methanogens.

Outlook

As the climate warms, ice wedge polygons will increasingly degrade. The challenge now is to figure out whether the transition from low-centred to high-centred polygons will enhance or mitigate climate warming. This depends on the balance between the uptake and release of methane and carbon dioxide, as well as the rate of transition from high- to low-centred polygons.

Further Reading

Lara, M.J., et al. (2015), Polygonal tundra geomorphological change in response to warming alters future CO2 and CH4 flux on the Barrow Peninsula. Global Change Biology, 21(4), 1634-1651

Liljedahl, A.K., et al. (2016), Pan-Arctic ice-wedge degradation in warming permafrost and its influence on tundra hydrology. Nature Geoscience, 9, 312-316.

Wainwright, H.M., et al. (2015), Identifying multiscale zonation and assessing the relative importance of polygons geomorphology on carbon fluxes in an Arctic tundra ecosystem. Journal of Geophysical Research: Biogeosciences, 707-723.

On permafrost instability: Image of the Week – When the dirty cryosphere destabilizes! | EGU Cryosphere Blog

On polygons in wetlands: Polygon ponds at sunset | Geolog

Edited by Joe Cook and Sophie Berger


Eleanor Jones is a NERC PhD student on the EU-JPI LowPerm project based at the University of Sheffield and the University Centre in Svalbard. She is investigating the biogeochemistry of ice-wedge polygon wetlands in Svalbard. She tweets as @ElouJones. Contact Email: eljones3@sheffield.ac.uk

Image of the Week – The ups and downs of sea ice!

Image of the Week – The ups and downs of sea ice!

The reduction in Arctic sea-ice cover has been in the news a lot recently (e.g. here) – as record lows have been observed again and again within the last decade. However, it is also a topic which causes a lot of confusion as so many factors come into play. With this Image of the Week we will give you a brief overview of the ups and downs of sea ice!

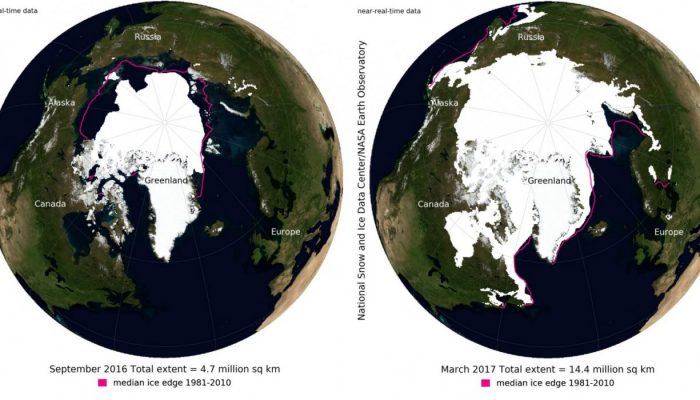

In general, Arctic sea ice is at its minimum extent at the end of the summer (September), and its maximum extent at the end of the winter (March). Our Image of the Week (Fig. 1) shows the summer and winter sea ice cover over the last year. In September 2016, the Arctic sea-ice minimum covered the second smallest extent since the beginning of satellite observations (38 years). Only 4.14 million square kilometres of the Northern Hemisphere were covered by sea ice on the day of minimum extent (September 10th). The maximum sea-ice extent was observed on March 7th 2017, only 14.42 million square kilometres of sea ice were observed: the lowest maximum since the beginning of satellite observations.

How long do we have until Arctic summer sea-ice cover is completely gone?

The Arctic Ocean is defined as ice-free, when the sea-ice area does not exceed 1 million km². Due to the close relationship between CO2 emissions and the sea-ice area (see one of our previous posts), it is likely that the summer Arctic sea-ice cover will fall below this threshold during the 21st century. Under the highest emission scenario (RCP 8.5 – IPCC, 2015), an almost ice-free Arctic in September is likely to occur before the middle of the century. It is, however, not easy to predict the exact year of an ice-free Arctic summer as the extent of the ice cover depends on many parameters influencing the freezing and melting of the ice.

On one hand, some parameters and their effect on the sea-ice cover are well understood and their future evolution can be projected quite well through climate models. For example, changes in the sea surface temperature tend to affect the starting date of the freezing period while changes in air temperature tend to affect the starting date of the melting period. As both air temperature and sea surface temperature are projected to increase in the long term, due to climate change, the period where ice can be present will be reduced more and more.

On the other hand, some parameters lead to several concurring effects, which are difficult to separate clearly and not always fully understood. Therefore, their future evolution and influence on sea ice is not totally clear. For example, the sea-ice loss leads to more open ocean areas, which absorb solar radiation, causing warming and therefore leading to faster sea-ice melting – a mechanism called “sea-ice albedo feedback”. At the same time, more open ocean areas also lead to more evaporation and therefore more clouds, which shield the ice from solar radiation and therefore lead to less warming of the ice and ocean surfaces.

Still, even if we knew the effect and long-term evolution of all these parameters, the exact date of ice-free Arctic could not be defined easily in advance. Why? The chaotic nature of the atmosphere leads to very short-term effects that influence the ice cover as well…

Be careful! A record minimum does not always mean a record maximum (and vice versa)!

On shorter time scales, sudden changes in the atmospheric circulation can have a large impact on sea-ice extent. Therefore, it is not guaranteed that a year with a record low maximum will have a record low minimum and vice versa. For example, heat waves and warm air outbreaks or high winds due to the transport of low pressure systems into the Arctic can lead to a more rapid decline of the sea-ice cover. The other way round, if the atmosphere from lower latitudes does not disturb the Arctic region, the sea-ice cover can stabilise again.

What about this year (2016/2017 season)?

Sometimes, it is not clear why sea-ice retreats rapidly. For example, the low 2016 minimum came as a surprise as the cover started with a very low minimum but then did not melt as fast as in previous years, due to average or below average temperatures. Only shortly before the minimum extent, stormy conditions came into play and led to the low extent that was observed (see Fig. 2).

Figure 2: Comparison of Arctic sea-ice extent between different years for summer (left) and winter (right). [Credit: Image courtesy of the National Snow and Ice Data Center]

The reasons for the record low 2017 maximum are better understood. The Arctic Ocean was not covered by much ice to begin. Then, the autumn and winter in the Arctic were very warm with air temperatures from October 2016 to February 2017 being from 2.5 to up to 5 degrees in some regions higher than on average.

From the Arctic to the Antarctic

In the last decades, although it recovered in some years between the record lows, the Arctic sea-ice cover has overall been declining. This is not the case on the other side of the planet, in Antarctica. Note that Antarctica is a complete different setting than the Arctic Ocean. The former being a continent surrounded by ocean and sea ice, the latter being an ocean with sea ice surrounded by continents.

Figure 3: Comparison of Antarctic sea-ice extent between different years for summer (left) and winter (right). [Credit: Image courtesy of the National Snow and Ice Data Center]

In recent decades, Antarctic sea-ice has been increasing very slowly (see Fig.3). Scientists were puzzled as such an evolution was not expected in a global warming framework. Explanations for this behaviour are that this is likely due to changing wind and surface pressure patterns around Antarctica. Contrary to this trend, this year (2016/2017) was a record low maximum and minimum in Antarctic sea-ice cover. This change is puzzling scientists even more. It remains unclear up to now if this is a permanent shift in the tendency of Antarctic sea ice or if this a single event. Be sure that the next months will be full of papers trying to explain this change in behaviour, it is going to be exciting!
