Image of The Week – A Game of Drones (Part 1: A Debris-Covered Glacier)

Figure 1: Down-glacier view of debris-covered Miage Glacier, Italy, taken from a low-altitude lightweight UAV in June 2016 (Credit: M. Westoby). As the summer progresses, the melting of winter snow cover prompts the development of a surface drainage network, characterised as a network of streams and ponds, which are concentrated in intermoraine troughs and drain into open crevasses or moulins. Snowmelt in this area will eventually reveal a glacier surface covered by a continuous mantle of supraglacial debris, comprised predominantly of mica-schist

What are debris-covered glaciers?

Many alpine glaciers are covered with a layer of surface debris (rock and sediment), which is sourced primarily from glacier headwalls and valley flanks. So-called ‘debris-covered glaciers’ are found in most glacierized regions, with concentrations in the European Alps, the Caucasus, Hindu-Kush-Himalaya, Karakoram and Tien Shan, the Andes, and Alaska and the western Cordillera of North America. Debris cover is important for ice dynamics for several reasons:

• A layer of surface debris thicker than a few centimetres suppresses ice ablation (Brock et al., 2010), as it insulates the underlying ice from atmospheric heat and insolation.
• In contrast, a thin layer of debris serves to enhance melt rates through reduced albedo (reflectance) and enhanced heat transfer to underlying ice.
• A continuous or near-continuous layer of debris can result in debris-covered glaciers persisting at lower elevations than, and attaining lengths which exceed those of their ‘clean ice’ counterparts (Anderson and Anderson, 2016).

Miage Glacier – the largest debris-covered glacier in the European Alps

The Ghiacciaio del Miage, or Miage Glacier, is Italy’s longest glacier and is the largest debris-covered glacier in the European Alps. It is situated in the Aosta Valley, on the southwest flank of the Mont Blanc/Monte Bianco massif. The glacier descends from ~3800 m to ~1700 m above sea level (a.s.l.) across a distance of around 10 km, and is fed by four tributary glaciers. The glacier surface is extensively debris-covered below ~2400 m a.s.l., and the average surface debris thickness is 0.25 m across the lower 5 km of the glacier (Foster et al., 2012).

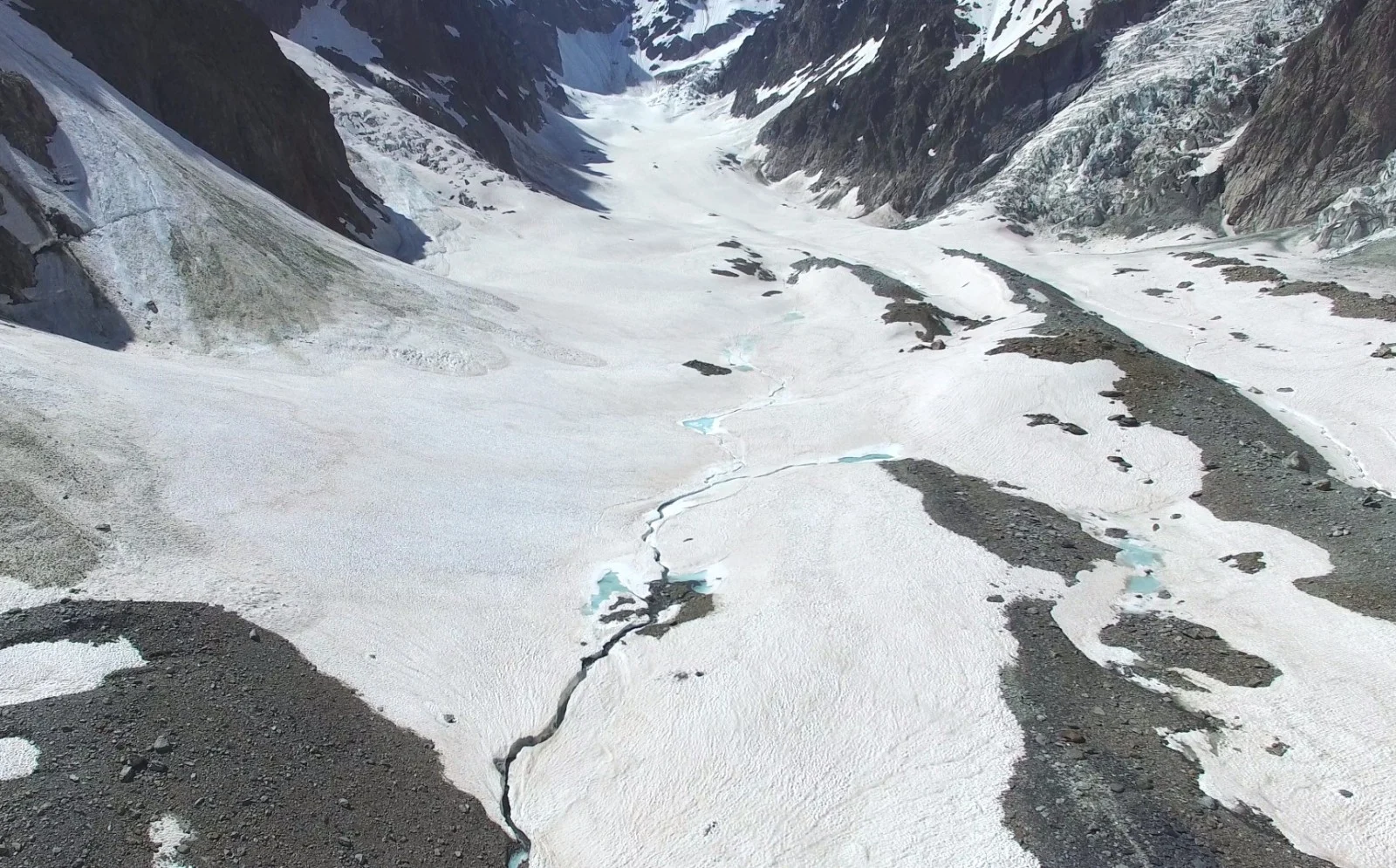

Figure 2: Up-glacier view of Miage Glacier, in which three of the glacier’s four tributaries are visible – from upper centre-left: Tête Carée Glacier, Bionnassay Glacier, Dome Glacier.

Glacier surveying using Unmanned Aerial Vehicles

Researchers from Northumbria University, UK, acquired these images of the glacier using a lightweight unmanned aerial vehicle (UAV) during a recent field visit to Miage Glacier. During the visit the team carried out a range of activities including the installation and maintenance of a network of weather stations and temperature loggers across the glacier and geomorphological surveying of the glacier and its catchment, whilst undergraduate students collected data for their final-year research projects. The UAV imagery reveals the emergence of surface debris cover from beneath winter snow cover and the persistence of a channelized hydrological network in the snowpack, characterised as a cascade of streams and storage ponds. A recent study by Fyffe et al. (2015) found that high early-season melt rates and runoff concentration in intermoraine troughs promotes the development of a channelized subglacial hydrological system in mid-glacier areas, whilst the drainage system beneath continuously debris-covered areas down-glacier is largely inefficient due to lower melt inputs and hummocky topography.

(Edited by Emma Smith and Sophie Berger)

Matt Westoby is a postdoctoral researcher at Northumbria University, UK. He is a quantitative geomorphologist, and uses novel high-resolution surveying technologies including repeat UAV-based Structure-from-Motion to quantify surface processes and landscape evolution in glacial and ice-marginal environments. Fieldwork on the Miage Glacier in June 2016 was supported in part by an Early Career Researcher Grant from the British Society for Geomorphology. He tweets as @MattWestoby Contact e-mail: mjwestoby@gmail.com
