To bird or not to bird..

In 2012, the controversial case over whether or not Archaeopteryx lithographica, perhaps the most iconic dinosaur species of all time, was a bird was settled. Apparently. (free pdf) This was an important analysis for two reasons. Firstly, it countered a previous study showing that Archaeopteryx was more closely related to dinosaurs like Velociraptor and Deinonychus, and secondly used advanced, sort of non-traditional methods in palaeontology, called maximum likelihood and Bayesian analysis, to work out its relationships.

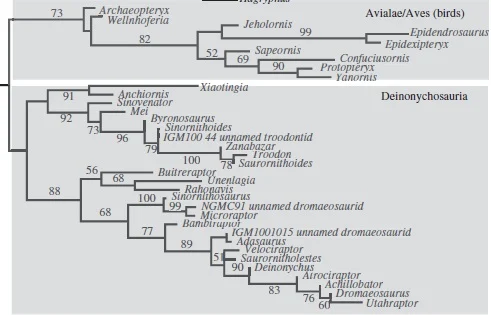

Tree from Lee and Worthy using Maximum Likelihood to show that Archaeopteryx is the most basal avialan

Tree from Lee and Worthy (2012) using Maximum Likelihood to show that Archaeopteryx is the most basal avialan

None of this is news. It was extensively covered upon release way back, and also revisited recently with the discovery of Aurornis xuiwhich was found to be the most basal bird (i.e., that which was closest to the origin of the group, typically known as Avialae, or Aves).

Reconstruction of Aurornis xui, a basal avialan from the Middle/Late Jurassic of China. Credit: Masato Hattori

Reconstruction of Aurornis xui, a basal avialan from the Middle/Late Jurassic of China. Credit: Masato Hattori

Now a new-ish study, from the December issue of a journal called Cladistics, has re-examined the data from the 2012 study, asking the question of whether or not the analyses they used even made sense to do in the first place. This is actually quite important. Maximum Likelihood and Bayesian analysis where designed with models in mind for describing the evolution of nucleotide data, that is genetic sequence data. Whether or not they can actually be used in fossil data, or that which is based purely on anatomy, is questionable, as anatomical features, or characters, evolve in a different manner to genetic data (e.g., there aren’t any transversions or transitions). Given how often now these methods are used for genetic data, and to great effect, it’s a bit weird that it seems to have been largely overlooked by palaeontologists and scientists who use morphology to reconstruct evolutionary relationships.

Usually, palaeontologists use a method called parsimony analysis, which is a much simpler model for generating evolutionary trees. To use any of the programs below, download one of the nexus files from here (dinosaurs!), and run it with the program – worth a fiddle for a bit of science-ing!

Parsimony

Sometimes called maximum parsimony, it’s a method of determining a tree that is the simplest to construct based on the data. Each change in morphology counts as a ‘step’, so you use various swapping algorithms to find the branch and species arrangement with the fewest steps. This is sort of like the path of least evolutionary resistance. Programs that do this include TNT.

Maximum Likelihood

Likelihood methods calculate the tree that maximises the probability of the observed data. It does this by determining the probability that a proposed model of evolution, combined with the hypothesised relationships, would give rise to the data set which you input (i.e., the character matrix – see previous blog post). A tree with the highest probability is that which is preferred, as its more likely to represent the input data. It’s not about whether or not a hypothesis is “likely” to be true, as often misconstrued. Phylip is a decent program for running this kinda analysis.

Bayesian inference

Bayesian analysis is sort of similar to ML in that  it involves probabilities. It relies on Bayes theorem, which generates what’s called a posterior probability (the probability of a hypothesis being true given the data) based on an estimate of the prior probability (probability of the hypothesis being true before new data) and the likelihood of the hypothesis given the data. So it’s an extension of ML in that it incorporates existing knowledge into the calculations. Good software for running Bayesian analysis includes BEAST or MrBayes

So whut?

So swinging all this intel back to Archaeopteryx and this new study, what does it all mean? Well, the authors re-generated the previous analyses using parsimony and ML analyses. They actually found a lot of conflict, such as the dissolution of the group Tyrannosauroidea (a usually pretty solid group, which includes Tyrannosaurus) using ML, and in the parsimony analysis, Archaeopteryx was no where near the base of Avialae, instead in a different group called Archaeopterygidae. In the ML analysis though, Archaeopteryx is the most basal avialan, with no sign of an Archaeopterygidae group. However, when a method of weighting that gives more ‘signal strength’ to stronger characters is used on the parsimony results, Archaeopteryx switches again to being the most basal avialan.

So it’s all a bit confusing, and the devil is most certainly in the details in this case. For the ML and weighted analyses, a different set of characters ends up defining the group Avialae, and hence why Archaeopteryx is included within. But for all three analyses, there are a different set of unambiguous features that define the clade, and hence this is why the placement of Archaeopteryx is uncertain: because of the ways in which different analyses treat characters. For example, one feature, or character “length of pedal phalanx II-2 is greater than or equal to the length of pedal phalanx II-1 [so the relative lengths of the first and second foot bones on the second digit] is present in both Archaeopteryx and basal deinonychosaurs, which would group them together to a degree.

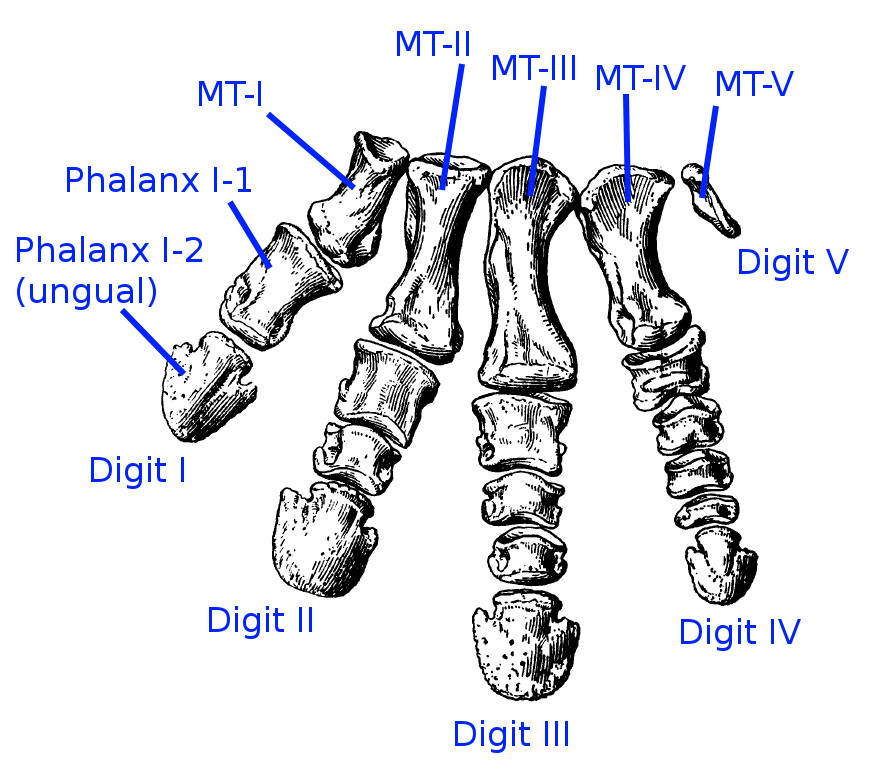

Bones in a dinosaur foot! (Source)

Bones in a dinosaur foot! (Source)

This also occurs with many of the other characters that are important in defining the base of birds (Avialae) – some are scored differently for different deinonychosaurs and avialans, which makes species which share an unusual combination of them, such as Archaeopteryx, difficult to place.

So while the ML and Bayesian results from the original study recover what can only be described as a ‘preferential’ position (well, it made a splash in the news), it also recovered some other weird results such as the breakdown of tyrannosauroid relationships. This is pretty at odds with many recent analyses of theropod dinosaurs. So, really, at the end of the day, this position of Archaeopteryx should be treated with *extreme caution* until the evolutionary implications of the anatomical transitions is explored in more depth. This will probably mean more species need to be analysed from a broader range alongside Archaeopteryx, to determine the real sequences of morphological change. It also shows that just because you get a result that you like, doesn’t mean it’s the correct one.

Future research really has to explore how the methods mentioned here can be applied to fossil morphological data. At the moment, it seems like perhaps we have unstable results, unsurprisingly, given that the methods used were never designed to handle fossil data.

As always, nothing is set in stone.

References

Spencer, M. R. and Wilberg, E. W. (2013) Efficacy or convenience? Model-based approaches to phylogeny estimation using morphological data, Cladistics29(6), 663-671 (link)

Lee, M. S. Y. and Worthy, T. H. (2012) Likelihood reinstates Archaeopteryx as a primitive bird, Biology Letters8(2), 299-303

Jon began university life as a geologist, followed by a treacherous leap into the life sciences. He is now based at Imperial College London, investigating the extinction and biodiversity patterns of Mesozoic tetrapods – anything with four legs or flippers – to discover whether or not there is evidence for a ‘hidden’ mass extinction 145 million years ago. Alongside this, Jon researches the origins and evolution of ‘dwarf’ crocodiles called atoposaurids. Prior to this, there was a brief interlude were Jon was immersed in the world of science policy and communication, which has greatly shaped his view on the broader role that science can play, and in particular, the current ‘open’ debate. He tweets as @Protohedgehog.

12 Comments

  1. One thing to keep in mind is that that ML analysis didn’t implement a correction for acquisition bias (ie, only collecting variable characters). This type of bias skews the distribution of observed characters away from the true distribution of characters by excluding characters that don’t vary. This causes artefacts in the form of inflating branch lengths, which can also lead to topological error, as branch lengths and topology are co-estimated in ML analysis. The Bayesian tree, which did not make it into the paper, but for which the data is available, corrects for this bias and recovers more of the traditional clades in theropds. While Bayesian supports Archy as a bird, it also has a polytomy between the bird branch and the two branches of Deinonychosauria. Which is fine: a statistically sound method returning an honest statement of uncertainty is better than a false confidence in a result.

  2. Thanks Jon. You have defined the evolution of the fudge factor very well!

    • I actually think that it’s kind of unfair to characterize the situation as a fudge factor. Parsimony and explicitly model-based approaches (because parsimony is indeed a model, albeit an implicit one) come from very different sets of assumptions. It’s not surprising that they yield different results in some cases.
      And that’s what rubbed me the wrong way about the Spencer and Wilburg paper. They’re dismissive of the idea that why we get a different topology from different analytical paradigms is an interesting biological question. It clearly is – what about the assumptions of each of these frameworks leads the process to estimate the tree that it obtained? Lee and Worthy provide what I think is a really nice discussion of this point. While what I wrote in my above comment is also true, and I wish they had included some discussion on that point, I hope more palaeontologists will do similar explorations and discussions in the future.

      • Completely agree! We need more methods-y oriented people to actually provide published empirical examples that we can follow, complete with a theoretical understanding of the models. Mebbe. :)

        • A sprawling simulation study comparison between Bayes and Parsimony on this point is a big chunk o’ my thesis. Stay tuned. Or, if impatient, e-mail me :)

          • ‘Urry up and publish it!! :)

  3. What is is critical to keeping the Earth turning on its axis, is that Utahraptor had to have flying ancestors!

  4. I know very little of this thing you call cladistics (as I’ve been told), but nature will nearly always throw a monkey wrench into things. Also, you can’t take Archaeopteryx out of Archaeopteryidae, it is named after it, take Archaeoptreryx out, then there is no Archaeopterygidae.

    • Hey Dino Hunter,

      Yeah, you’re probably right. I mentioned this in a previous post of mine about Atoposaurus and Atoposuridae.

      If you’d like to know more about cladistics, there’s a really useful introductory series here: http://www.ucmp.berkeley.edu/clad/clad1.html – it’s a bit much to fit a full explanation into a post reply! :)
